A portable real-time spectrum analyzer in a 10.1-inch touchscreen handheld. The ICX-FieldHawk covers 9 kHz to 40 GHz across three models, delivers 100 MHz of gapless analysis bandwidth, and sweeps up to 1 THz/s for fast field work and lab measurement.
ICX-090 / ICX-200 / ICX-400 · Document rev. A · Specifications verify against the published Berkeley Nucleonics datasheet
1Overview

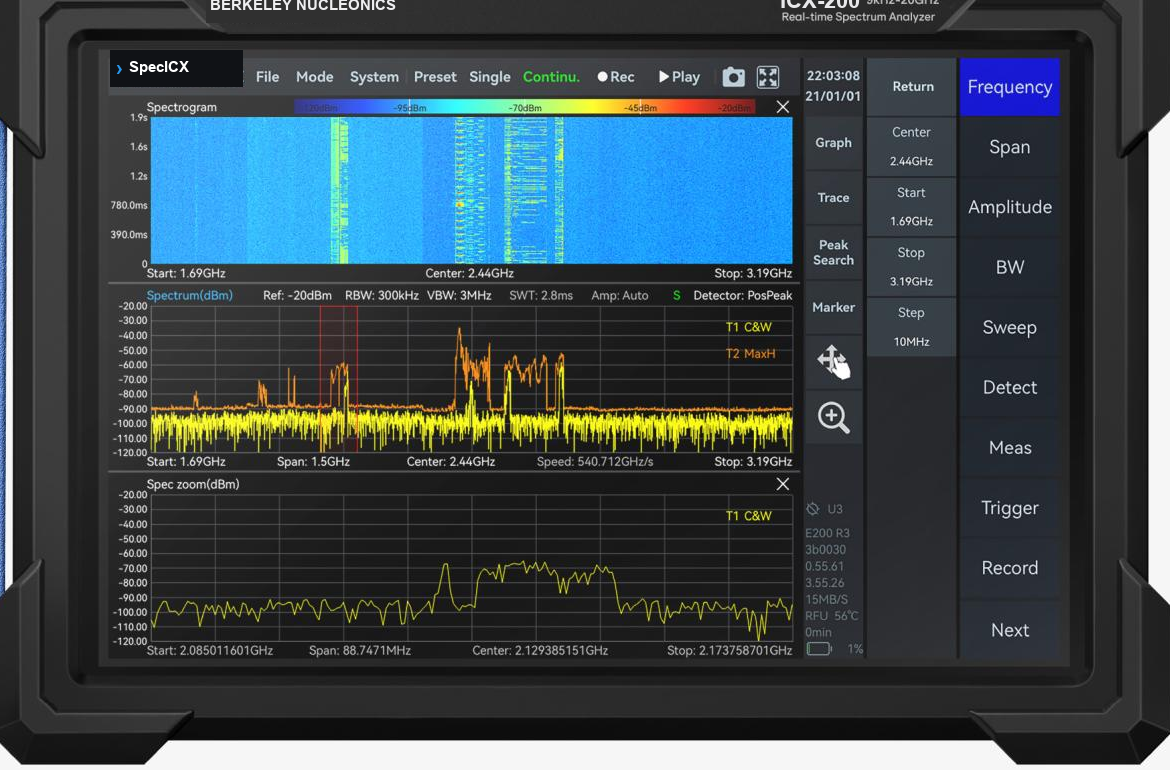

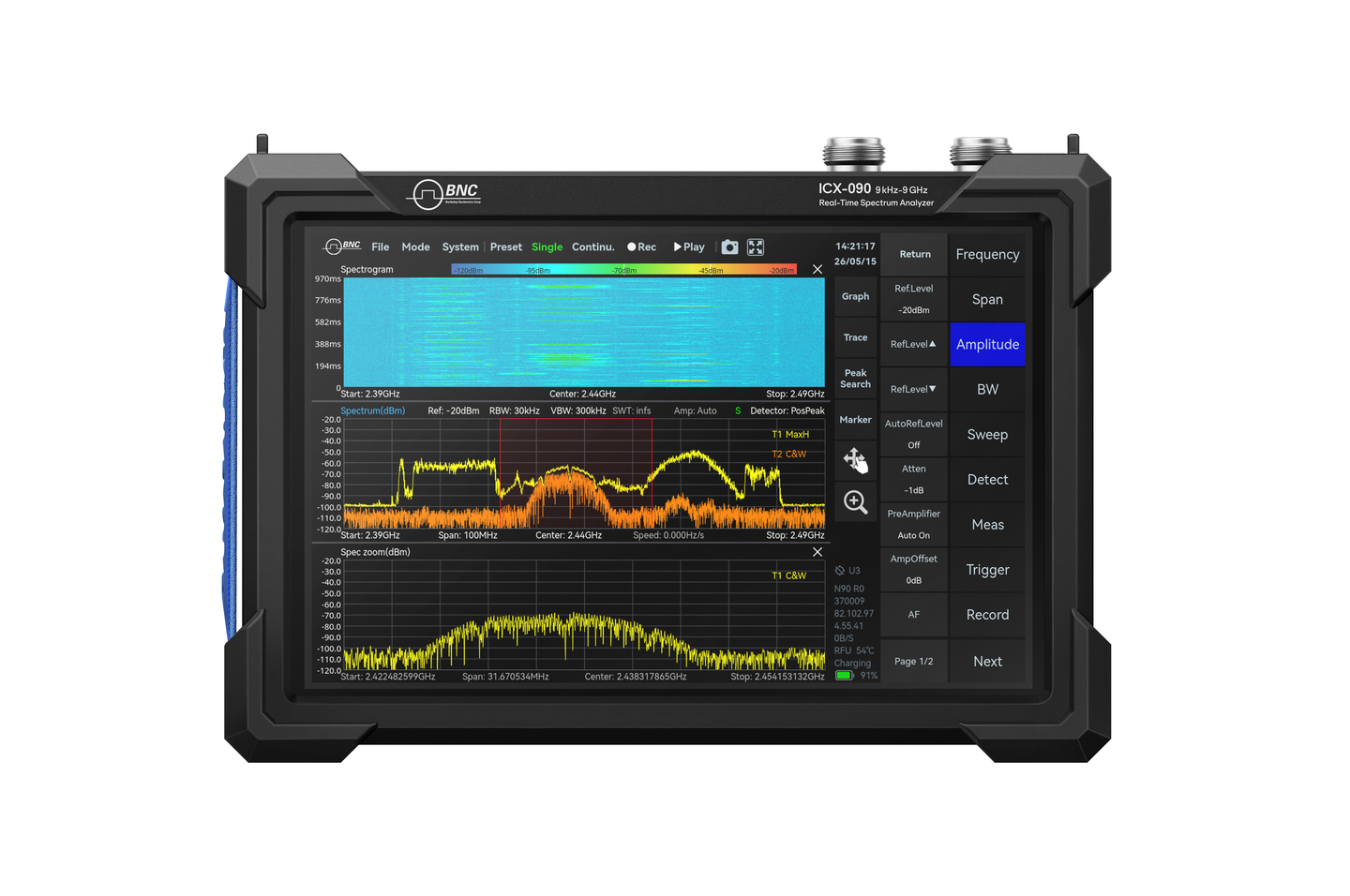

The Berkeley Nucleonics ICX-FieldHawk is a handheld real-time spectrum analyzer built for solid RF performance away from the bench. The series offers frequency ranges from 9 kHz up to 9.5, 20, or 40 GHz and a standard analysis bandwidth of 100 MHz. Based on a fast FFT design, it also achieves a sweep speed up to 1 THz/s.
The instrument is equipped with a 10.1-inch full touch screen and an intuitive user interface that allows smartphone-like touch gestures. It weighs around 1.5 kg for easy carry and operation in the lab or the field.

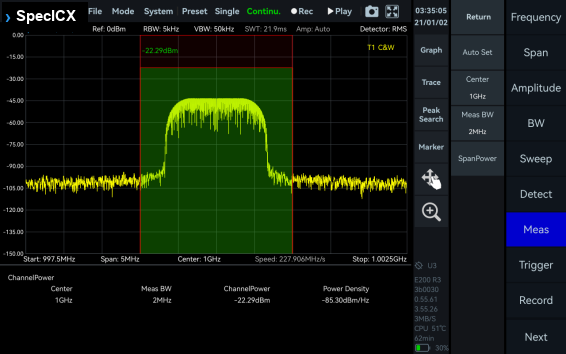

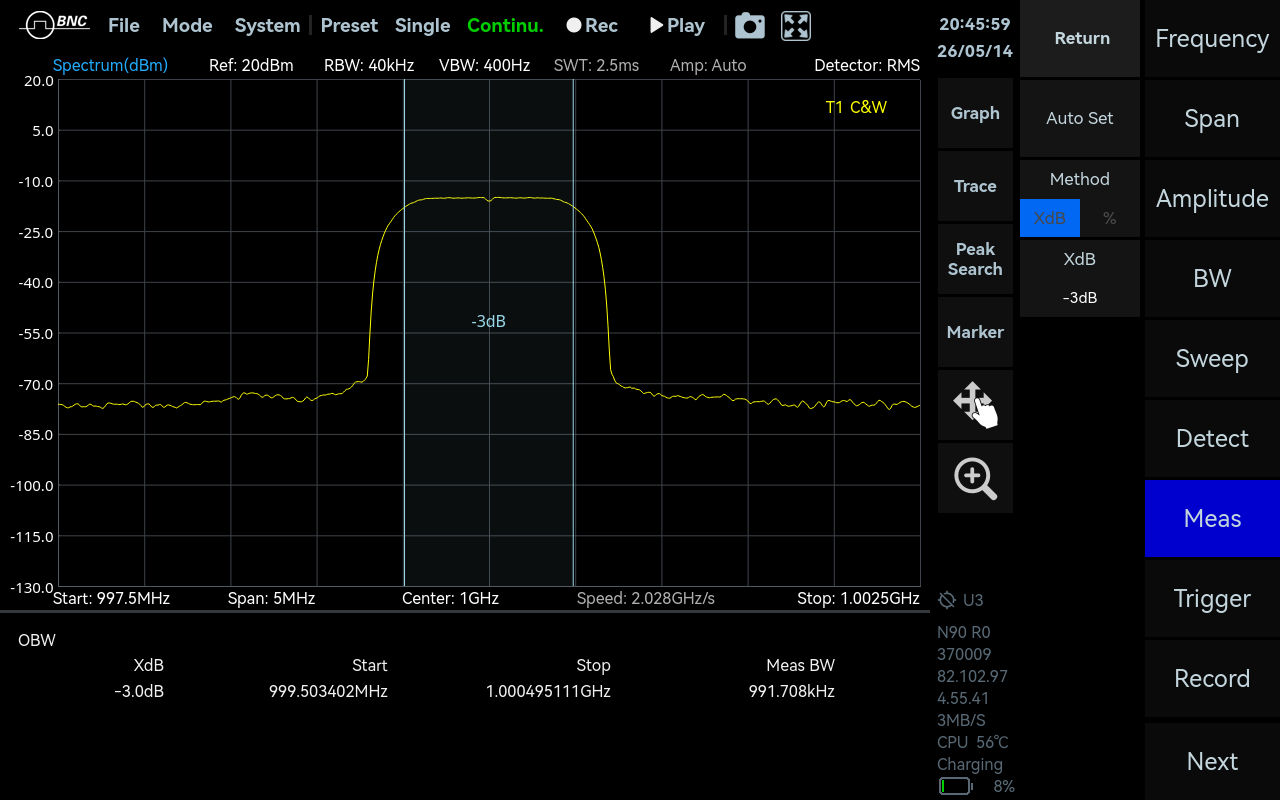

The ICX-FieldHawk comes standard with a variety of advanced measurement functions, including channel power, OBW, X dB bandwidth, harmonic measurement, SEM, AM/FM demodulation, and automatic phase noise analysis. The SpecICX-gen3 software adds spectrum, spectrogram, and historical trace views.
Highly compatible API interfaces support mainstream programming languages including C/C++, C#, Python, MATLAB, Qt, and LabVIEW. That makes secondary development straightforward and integration into larger systems clean. Talk to a Berkeley Nucleonics engineer about matching the right model to your application.
2Key Features
Ultra portable, flexible performance. A field-ready handheld that does not trade away RF measurement depth.
Standard 3-hour battery life with external power expansion support for longer sessions.
Portable design. About 1.5 kg with a 10.1-inch multi-touch screen.
Frequency range 9 kHz to 9.5 / 20 / 40 GHz across the ICX-090, ICX-200, and ICX-400 models.
100 MHz analysis bandwidth with gapless, overlap-free real-time FFT.
1 GHz DANL below -160 dBm/Hz for low-level signal work.
Standard SCPI protocol support for remote control and automation.
3Models & Frequency Range
Three models share the same 10.1-inch handheld platform and 100 MHz analysis bandwidth. They differ in upper frequency limit and RF input connector.
Model
Frequency range
RF input connector
Analysis bandwidth
ICX-090
9 kHz to 9.5 GHz
N (F), impedance 50 Ω
100 MHz
ICX-200
9 kHz to 20 GHz
N (F), impedance 50 Ω
100 MHz
ICX-400
9 kHz to 40 GHz
2.4 mm (M), impedance 50 Ω
100 MHz
4Operating Modes
The ICX-FieldHawk offers main operating modes including Standard Spectrum Analysis, IQ Streaming, Power Detection, Real-Time Spectrum, Phase Noise Measurement, and Harmonics Analysis. Digital Demodulation is available as an option.

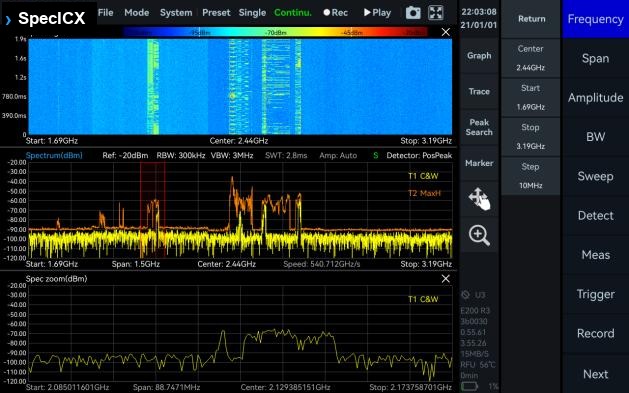

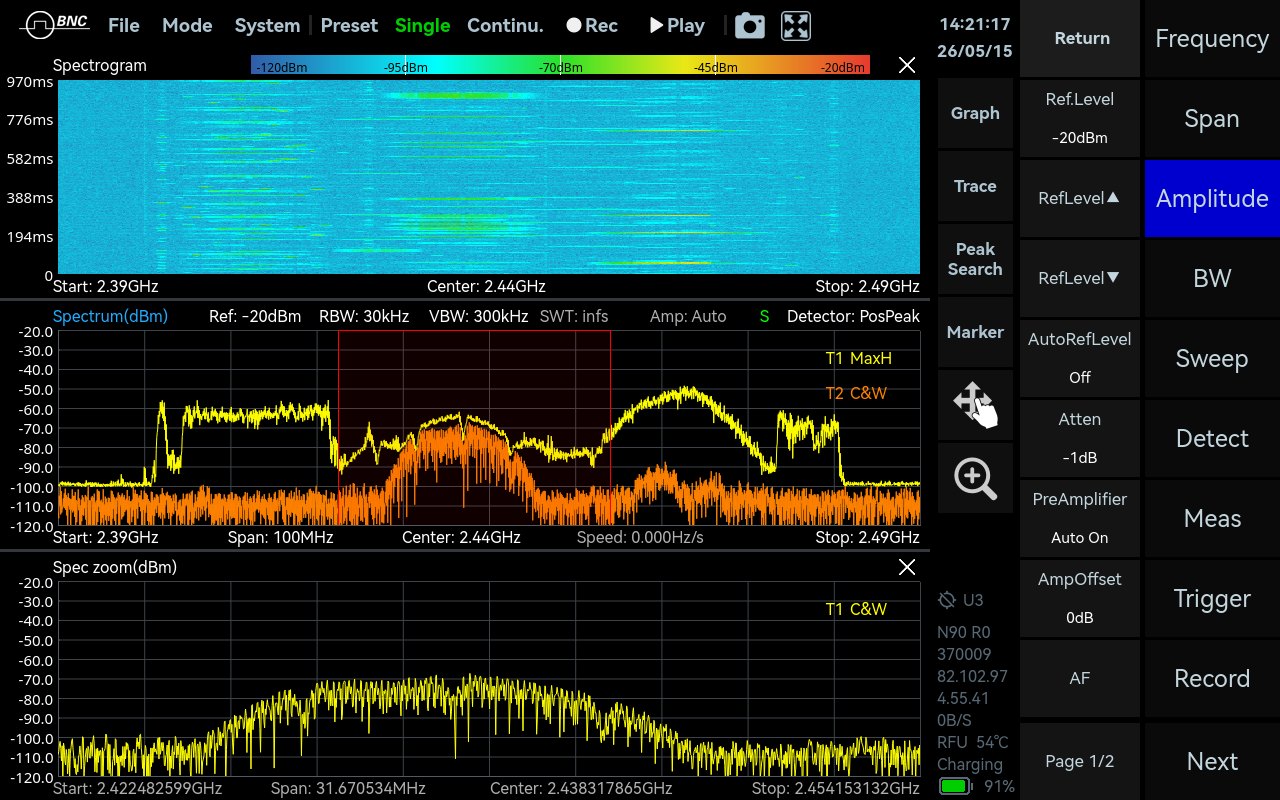

Standard Spectrum Analysis

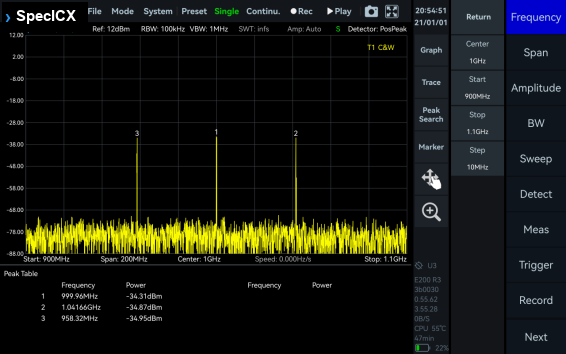

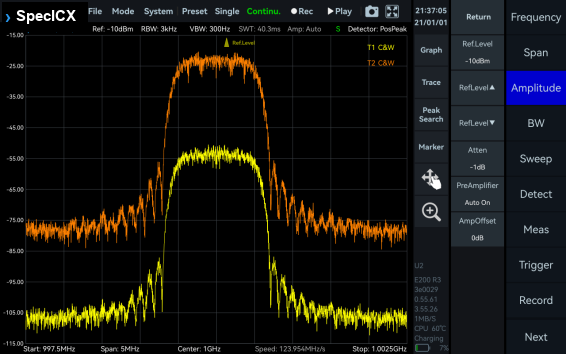

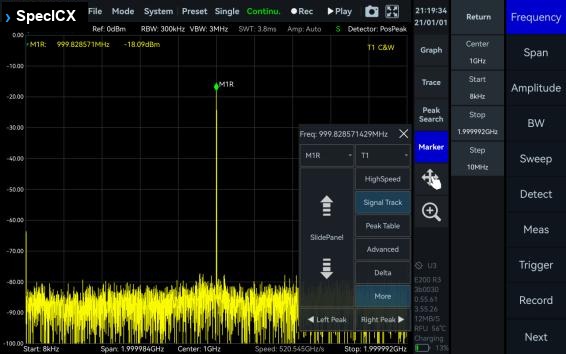

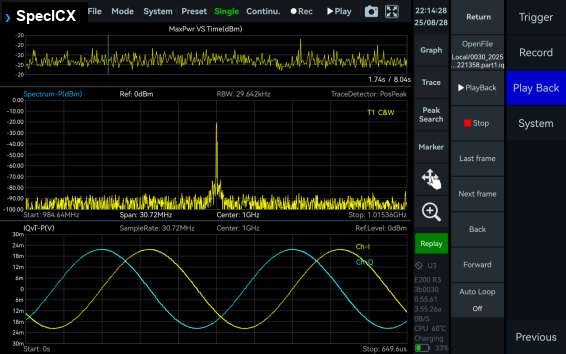

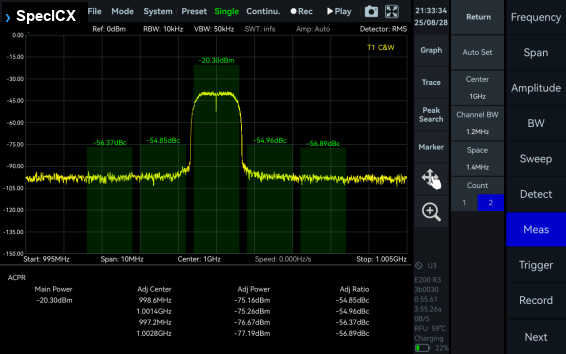

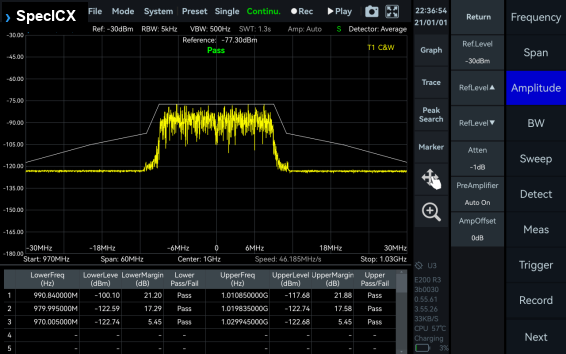

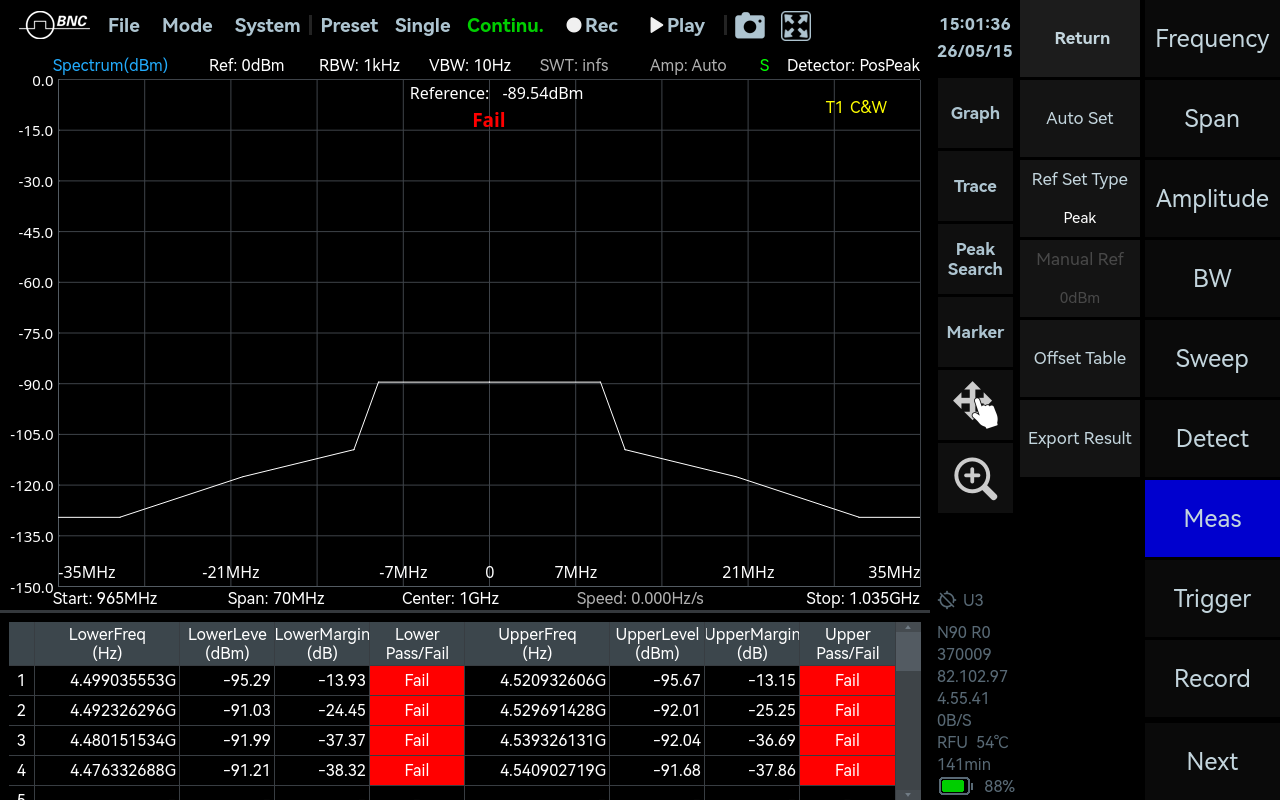

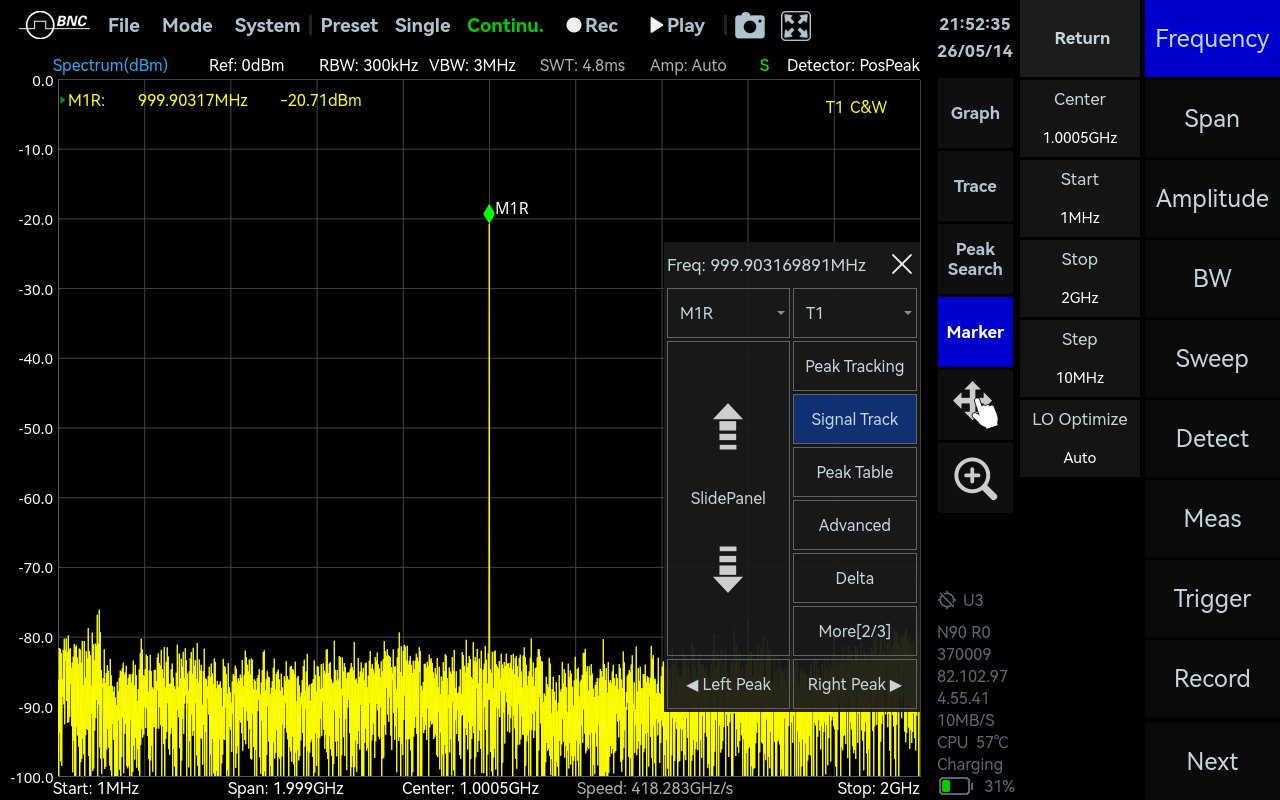

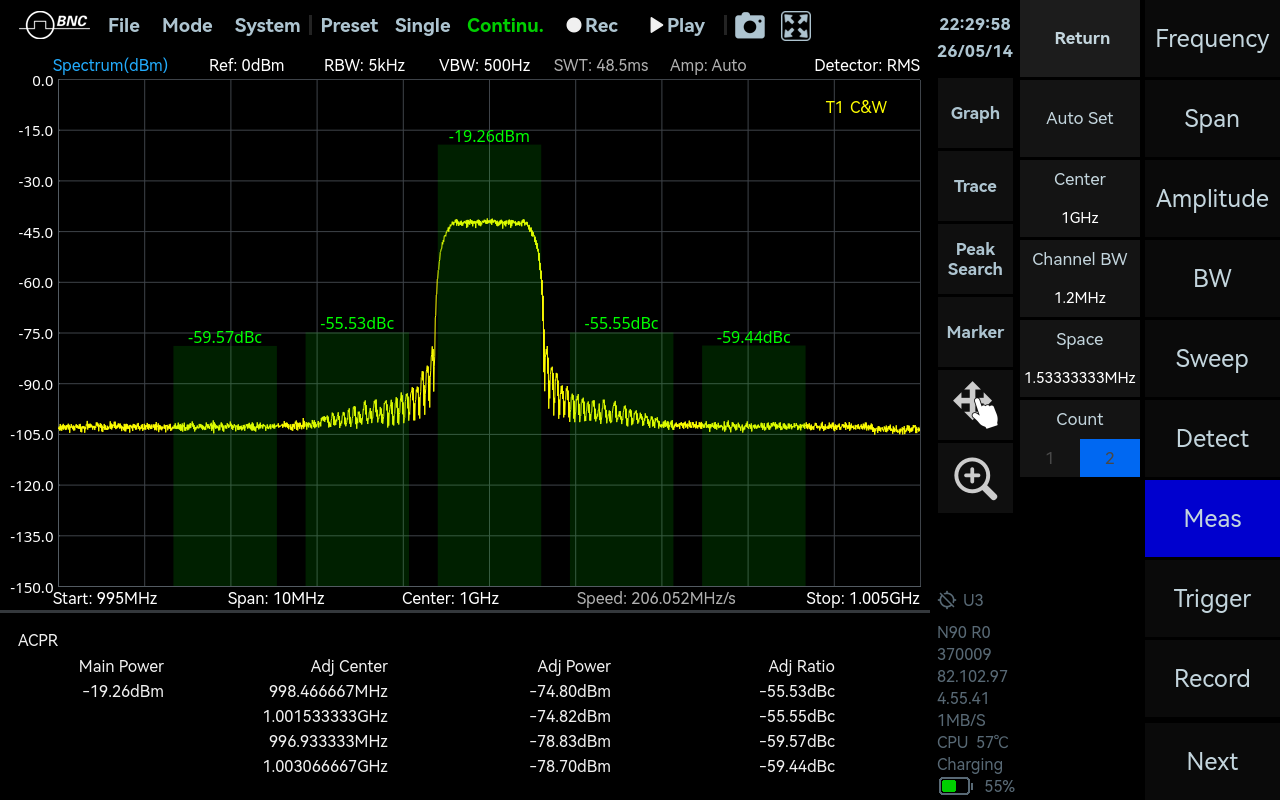

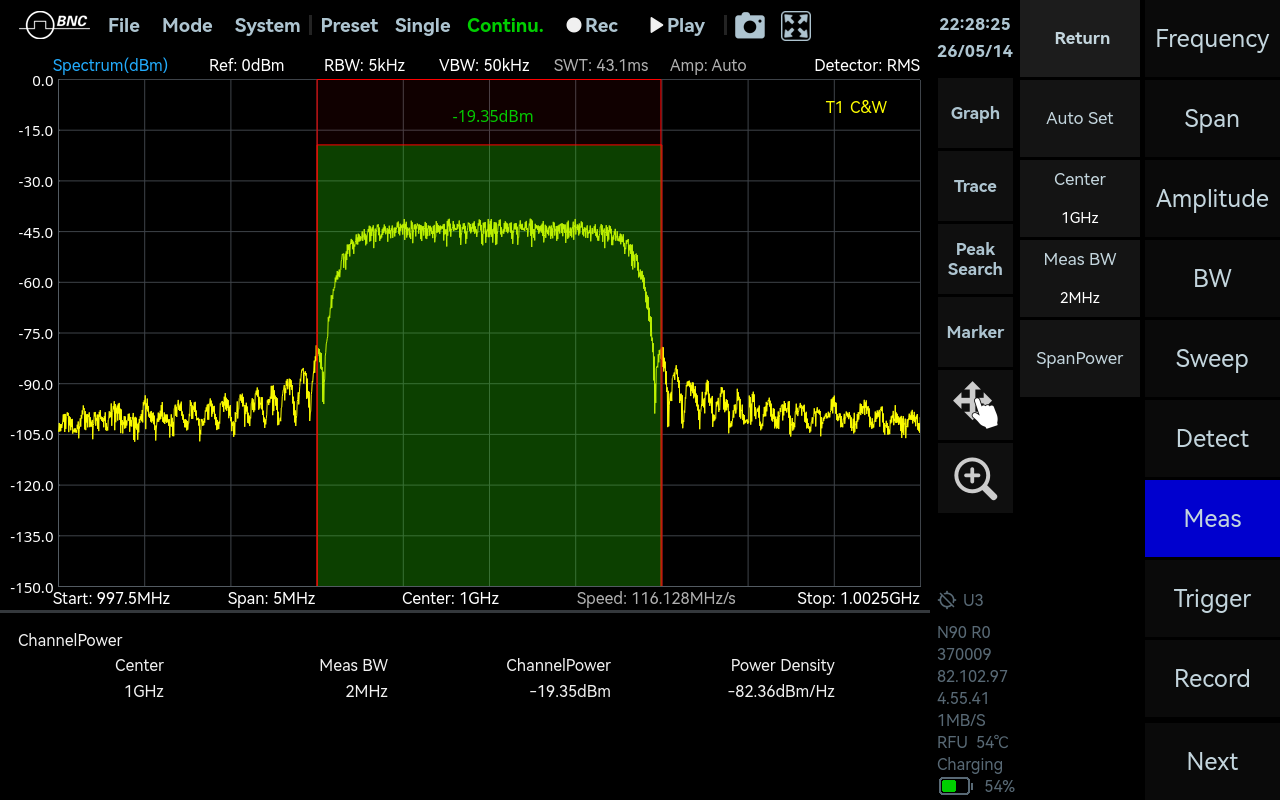

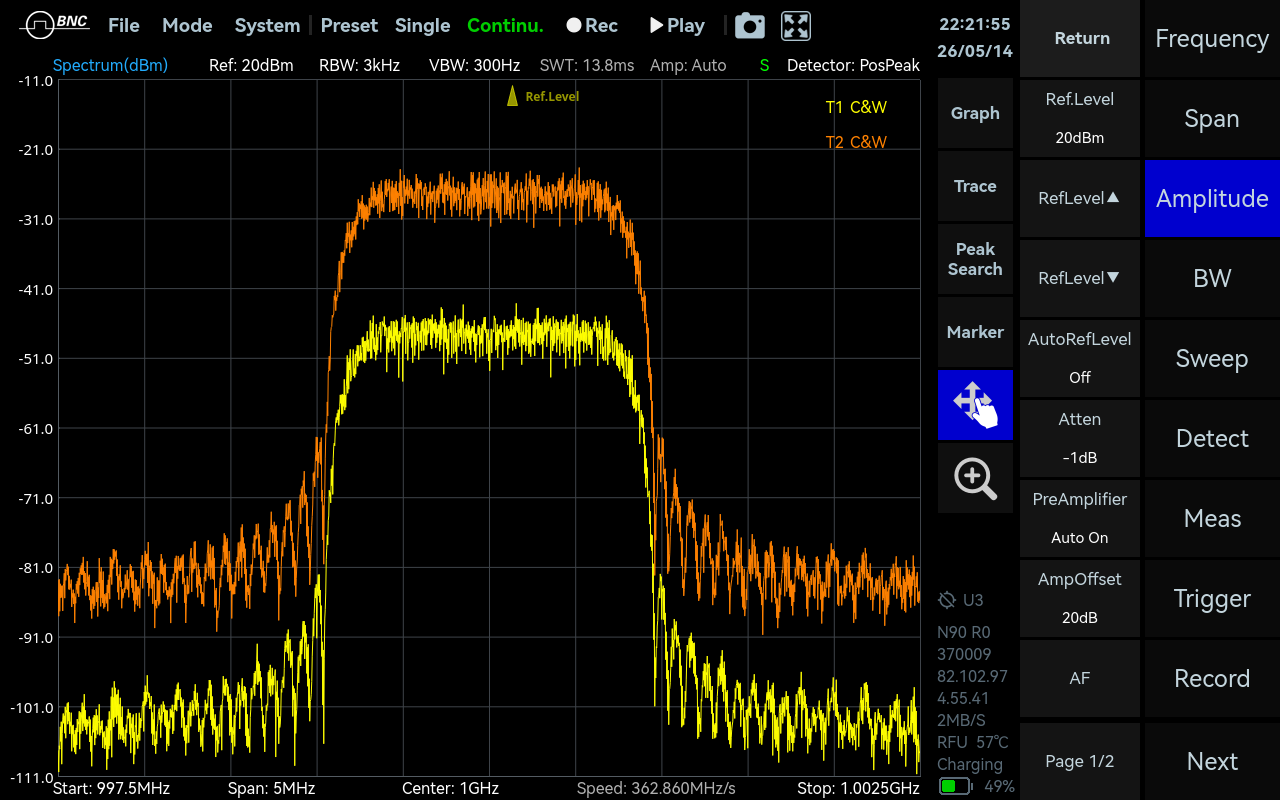

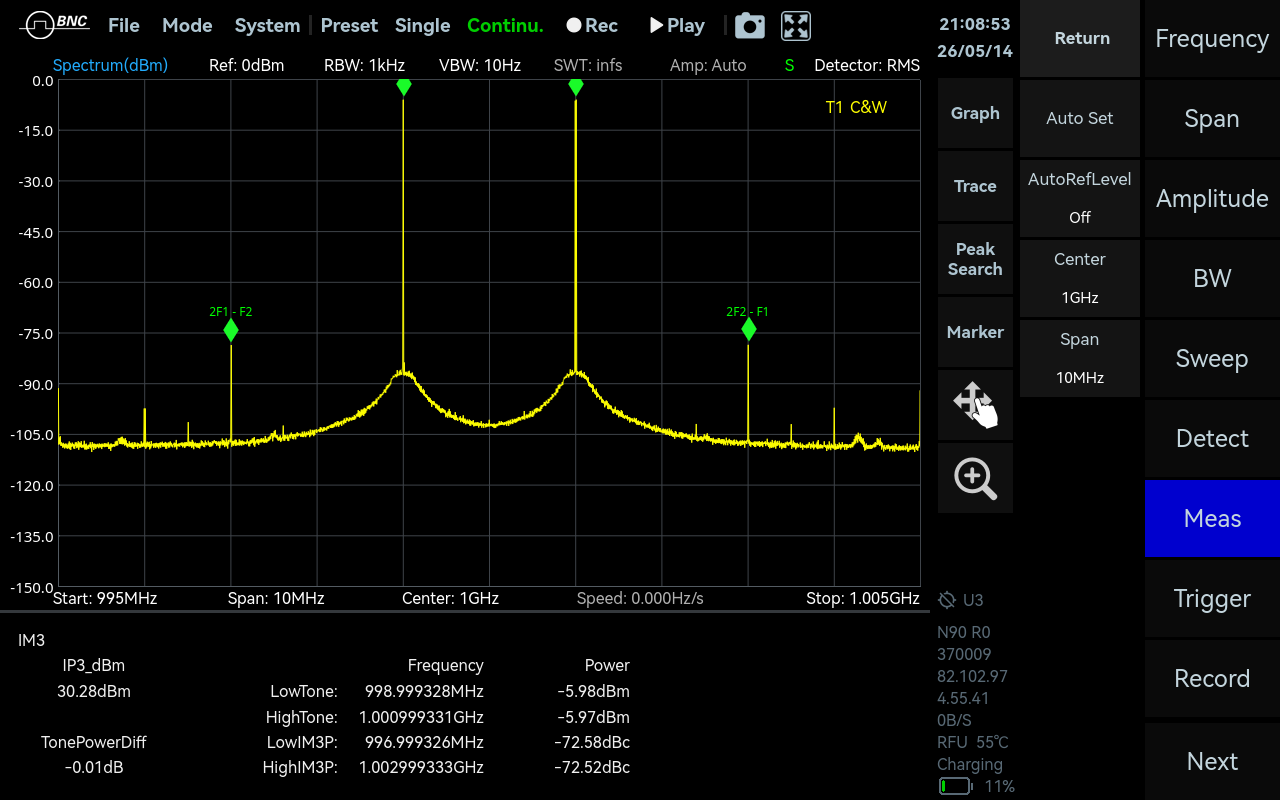

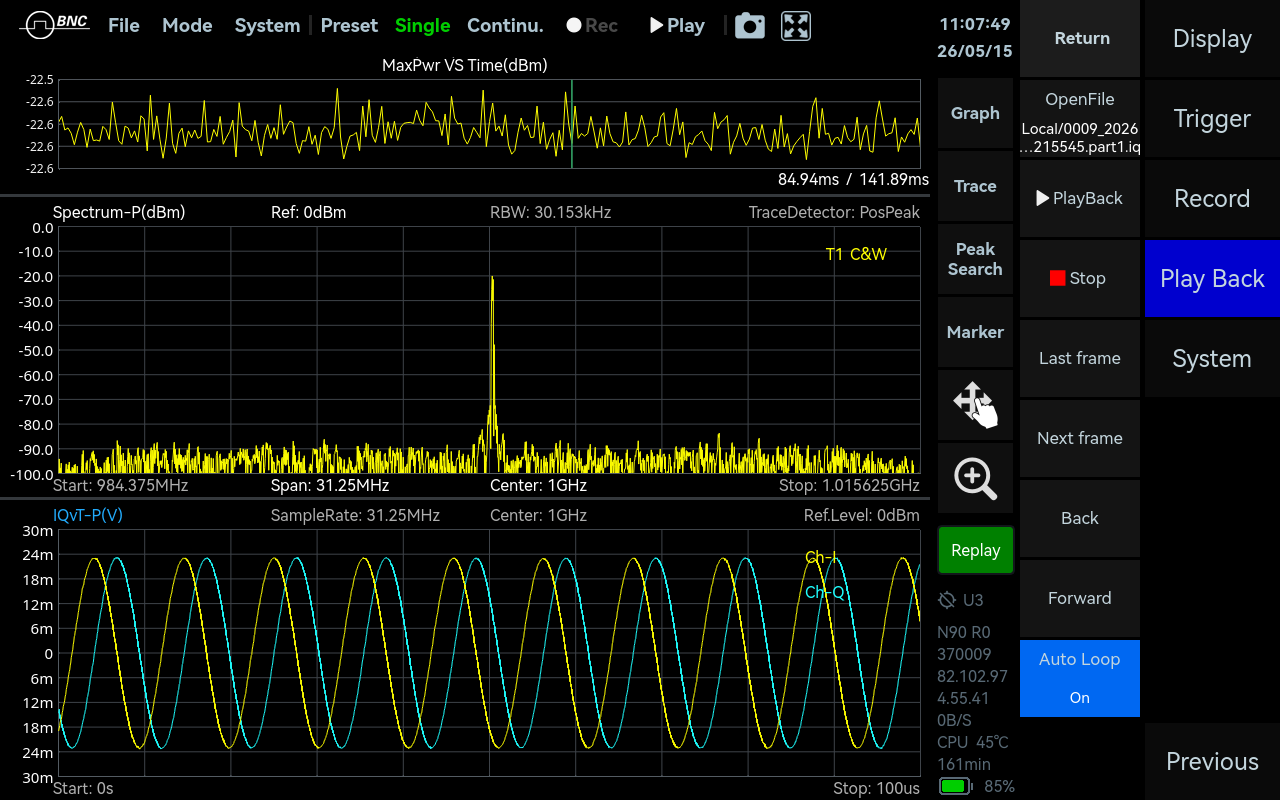

This mode provides a wide range of measurement functions, including full-span spectrum sweep, channel power, OBW, ACPR, IM3, and SEM. It also supports spectrum recording and playback. Combined with auxiliary tools such as signal tracking, peak table, and amplitude correction, it delivers a one-stop platform for comprehensive spectrum check.
Standard Spectrum Analysis

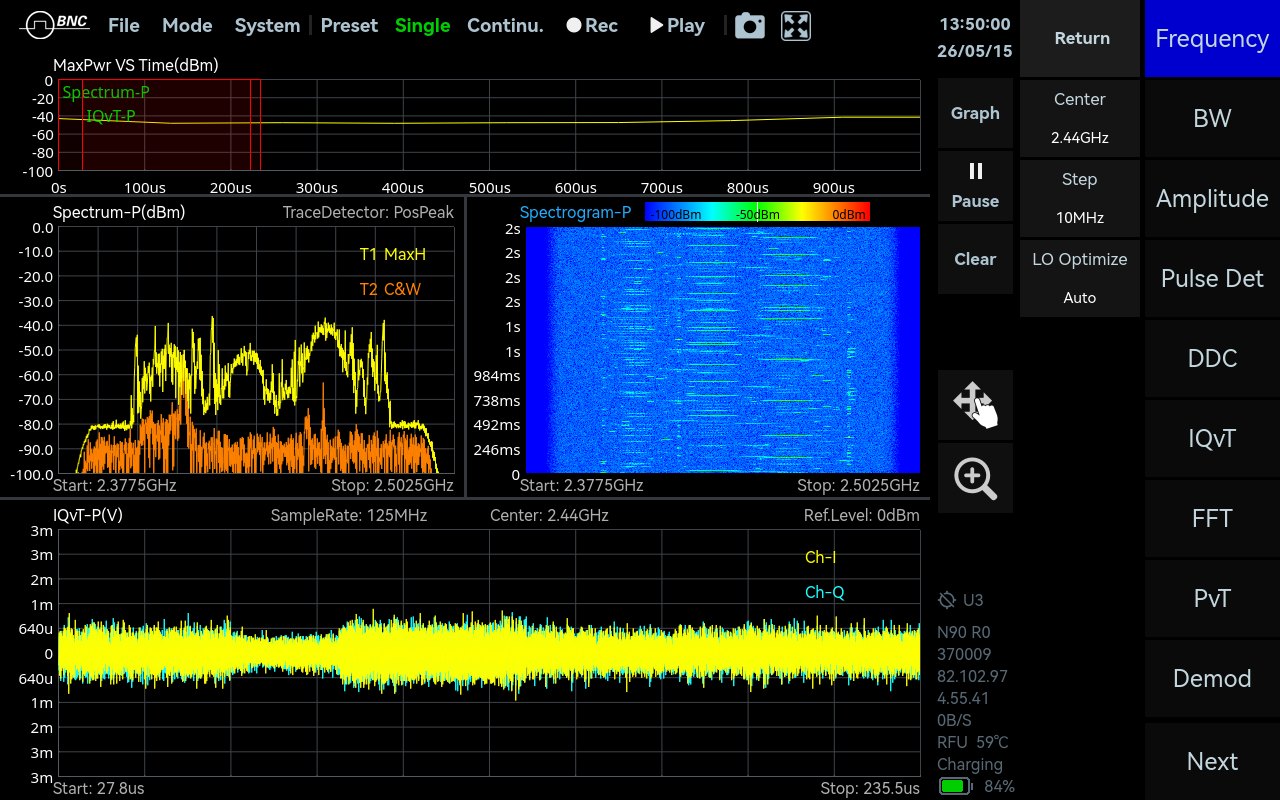

IQ Streaming Analysis

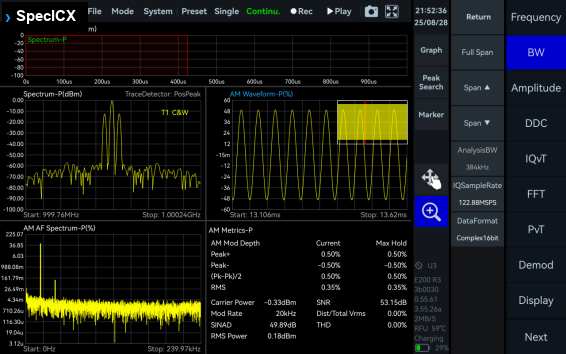

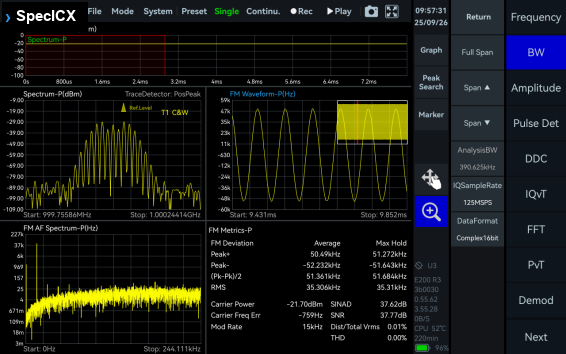

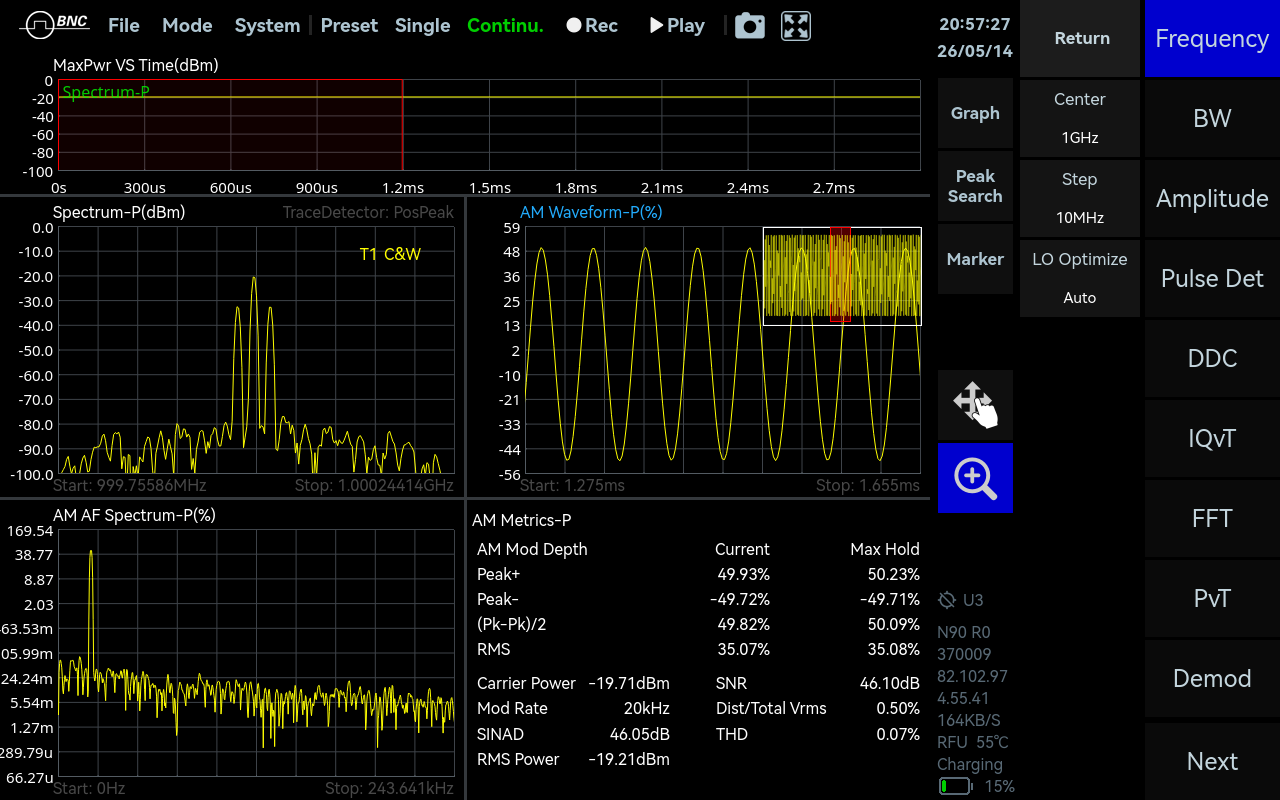

This mode supports up to 100 MHz analysis bandwidth and allows IQ data acquisition through multiple trigger methods. It provides IQ time-domain waveform display, spectrum and spectrogram views, AM/FM demodulation, and digital down-conversion (DDC).
IQ Streaming Analysis

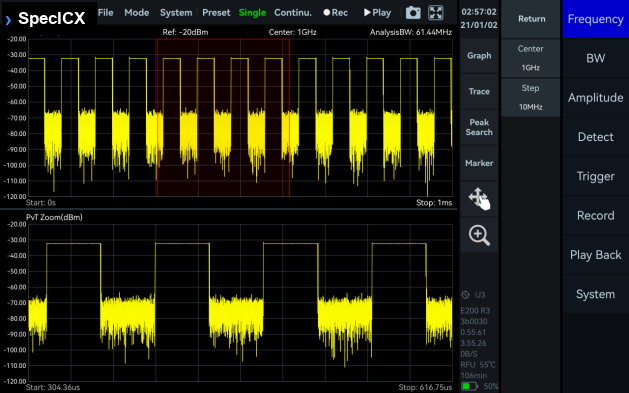

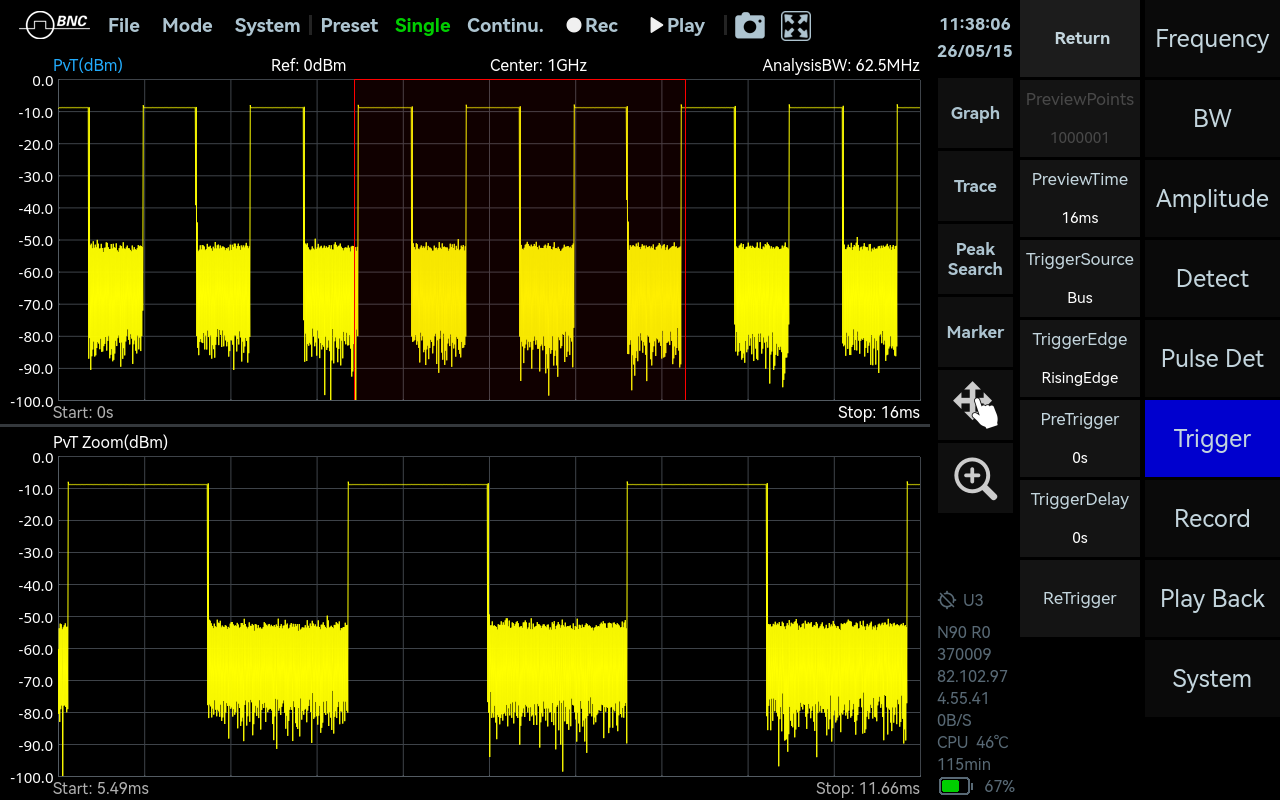

Power Detection Analysis
This mode enables detection and analysis of time-domain signals within the analysis bandwidth. It suits applications focused on in-band power-versus-time relationships, such as pulse signal measurements.
Power Detection Analysis

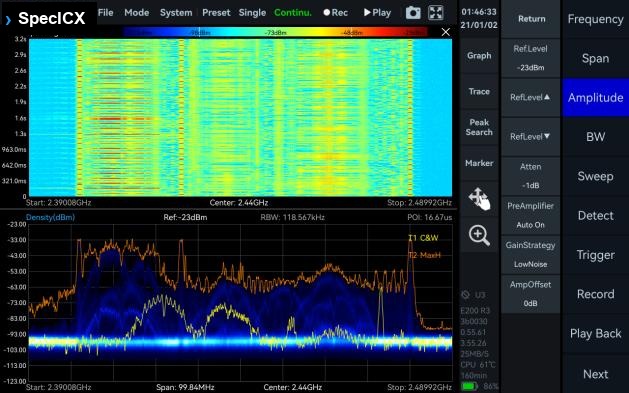

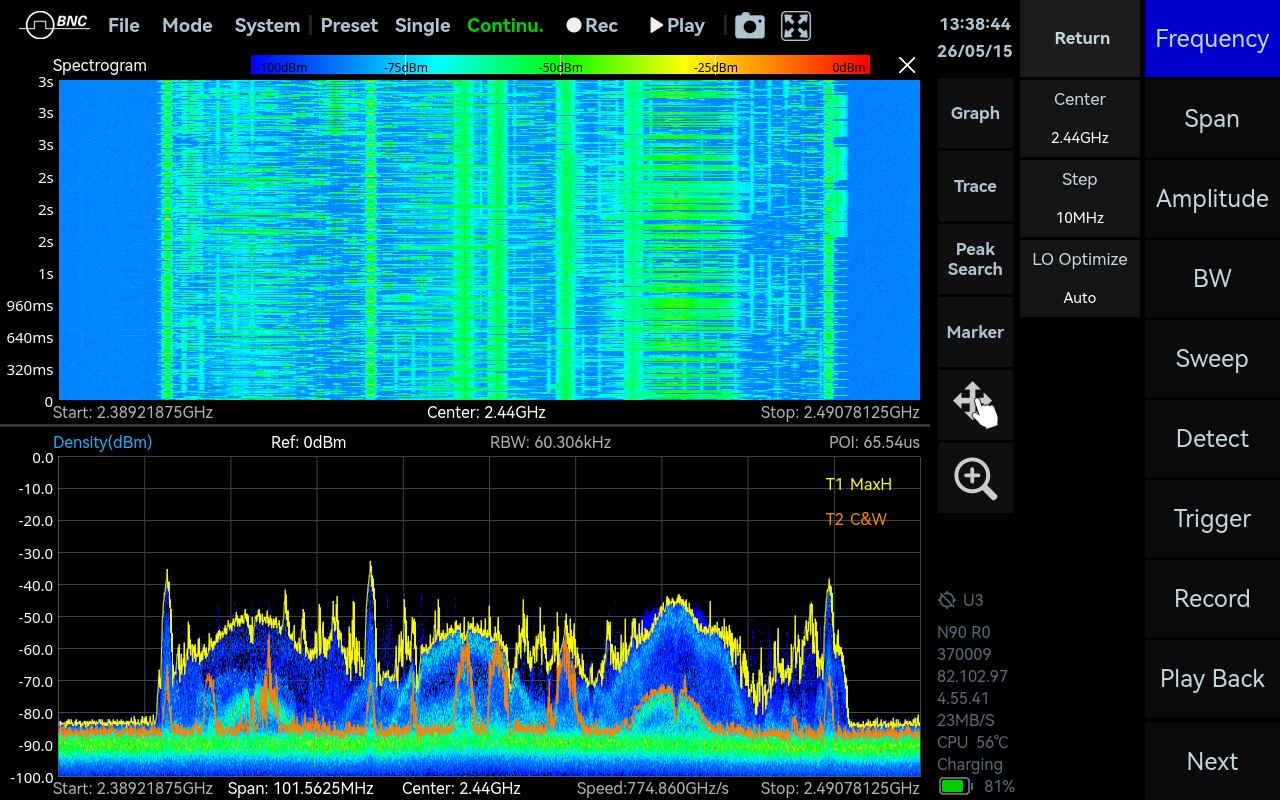

Real-Time Spectrum Analysis
This mode is powered by a high-speed FPGA-based FFT engine. With strictly gapless and overlap-free FFT, it achieves true real-time monitoring across the full bandwidth.
Real-Time Spectrum Analysis

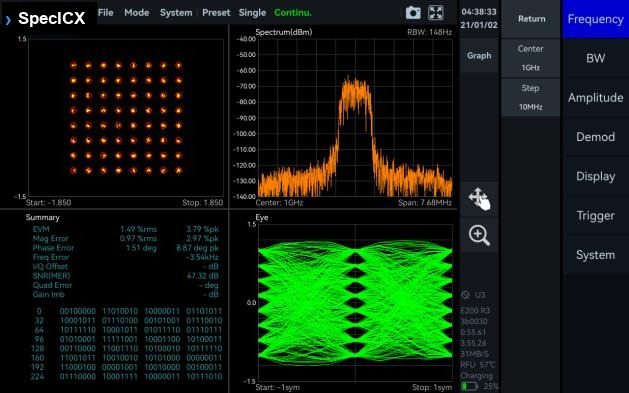

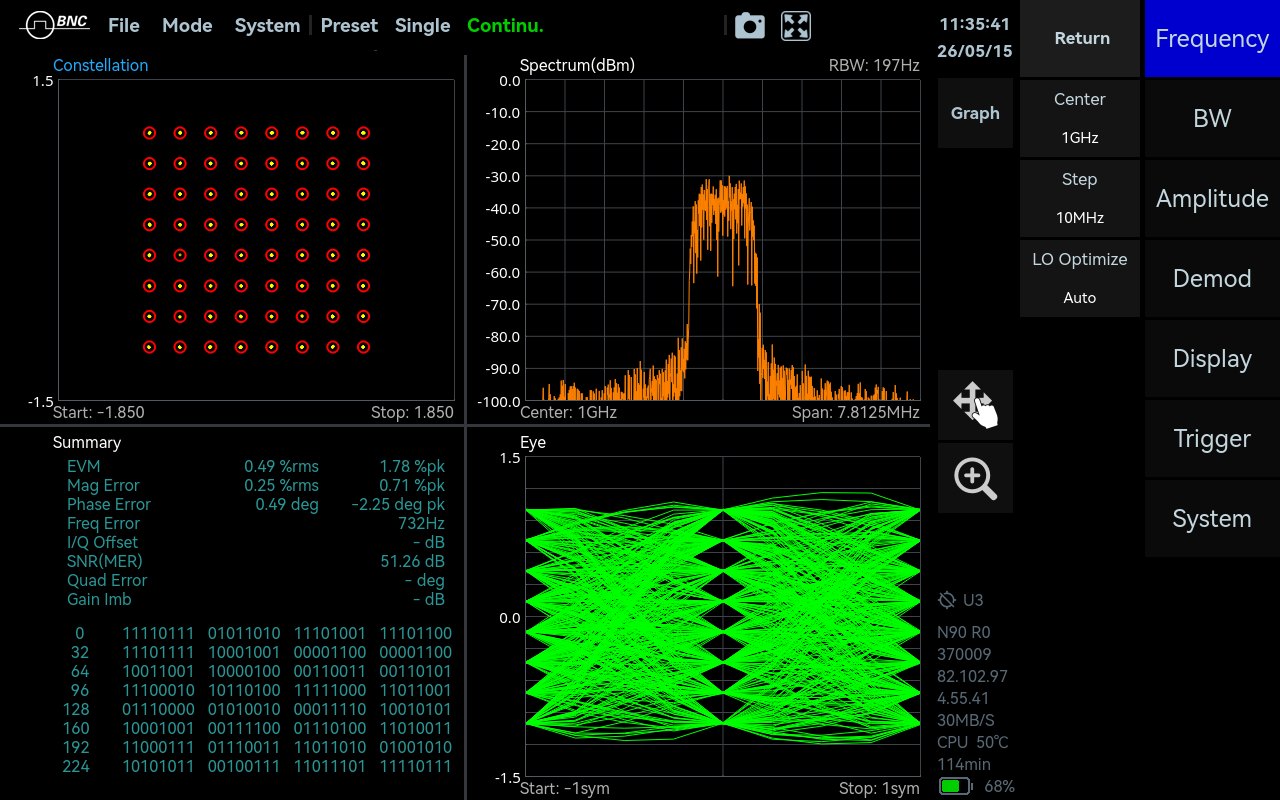

Digital Demodulation (option)
This mode supports 2ASK, 2FSK, 4FSK, GMSK, BPSK, QPSK, 8PSK, 16QAM, 64QAM, 128QAM, and 256QAM signals.
Digital Demodulation (option)

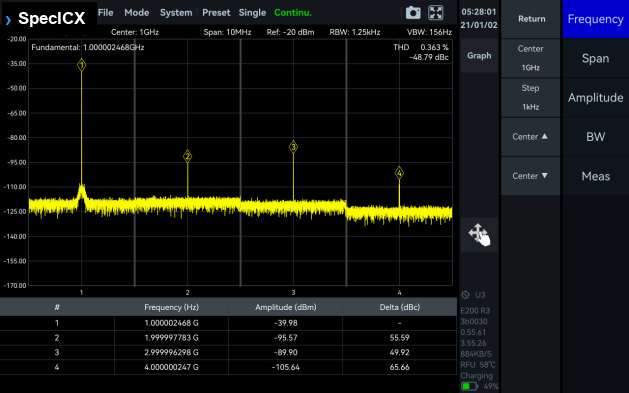

Harmonics Analysis
This mode supports detection and measurement of up to 10 harmonic components, including harmonic peaks, harmonic channel power, and total harmonic distortion.
Harmonics Analysis

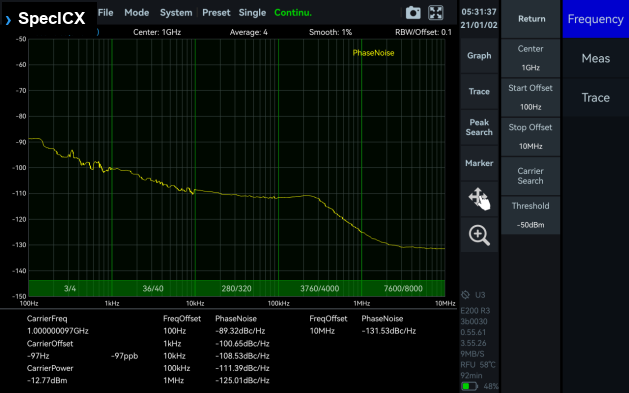

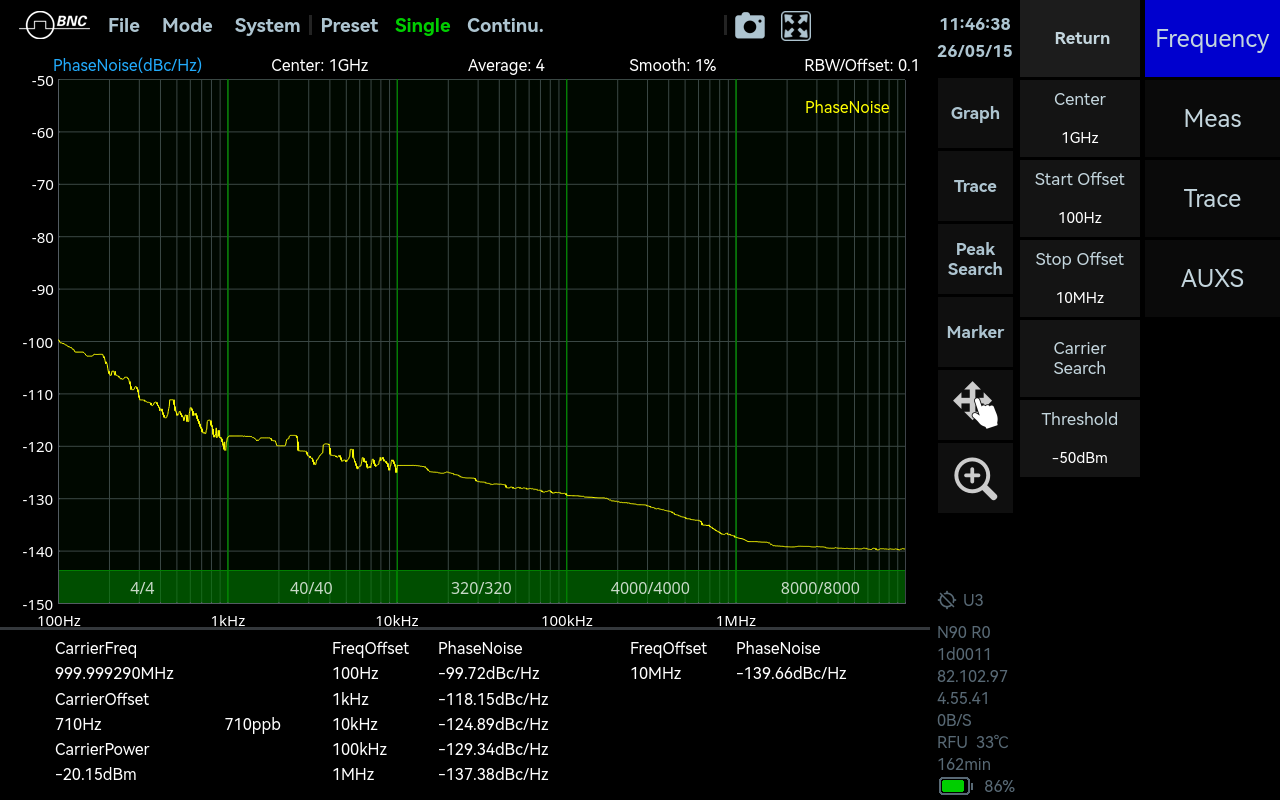

Phase Noise Measurement
This mode supports offset ranges from 1 Hz to 10 MHz for evaluating carrier phase stability. With the built-in automatic carrier search function, the software can quickly locate the target carrier without manual adjustment.
Phase Noise Measurement
5Main Functions

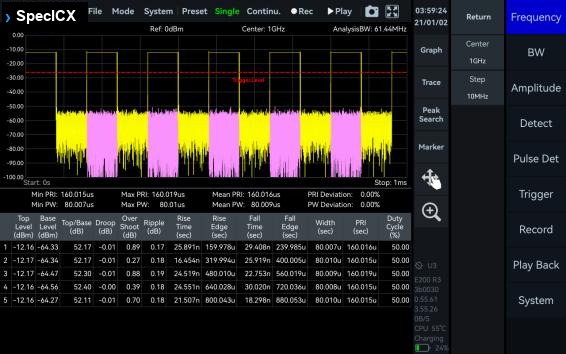

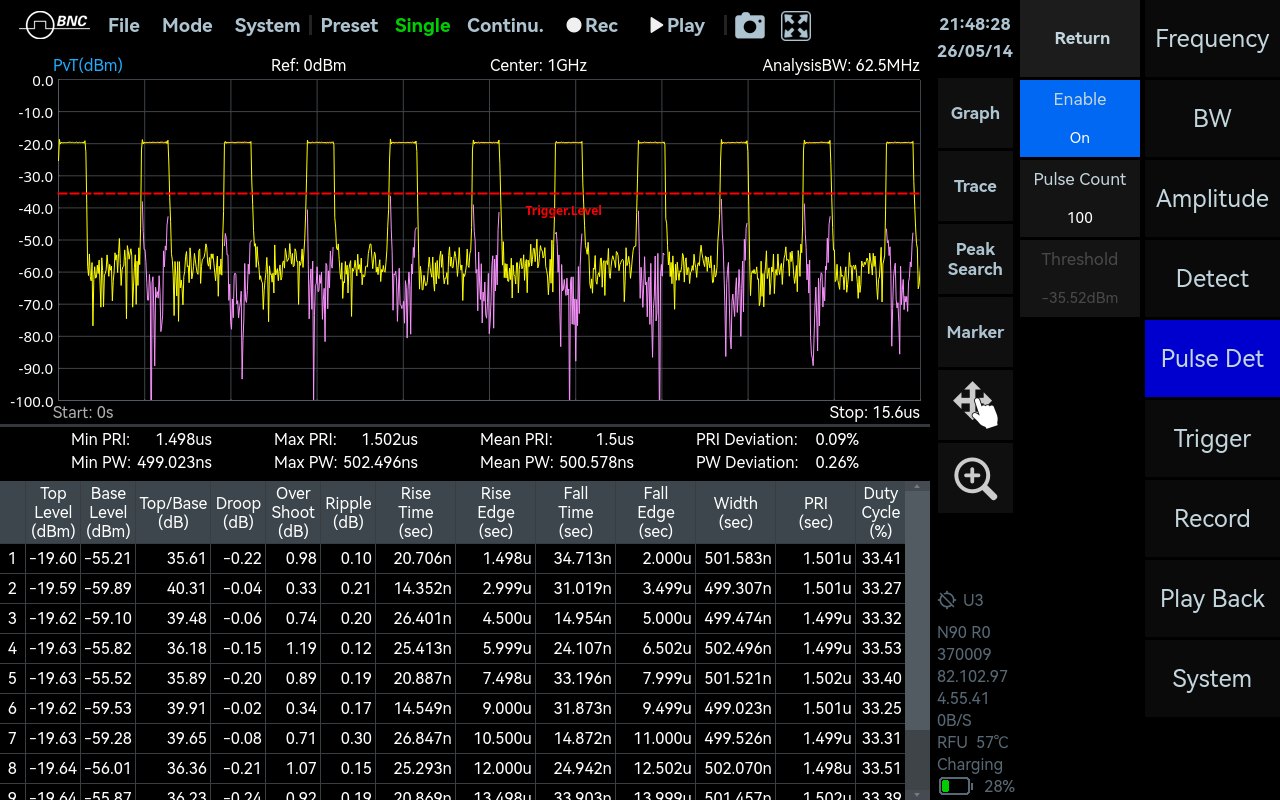

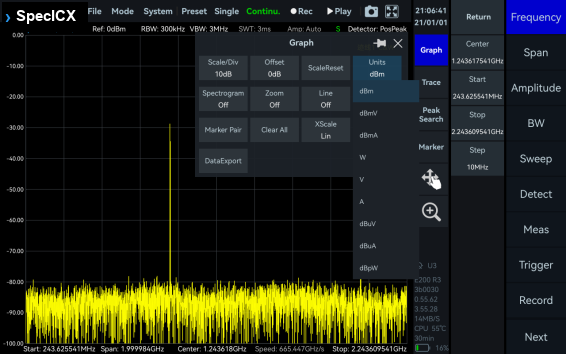

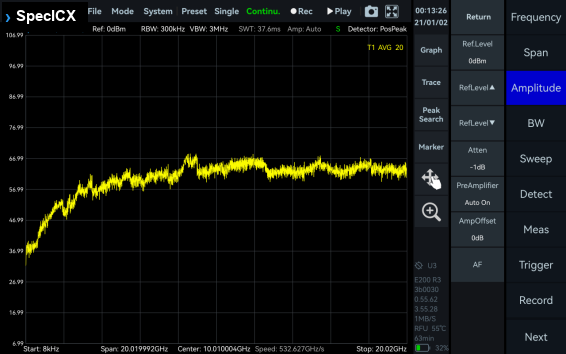

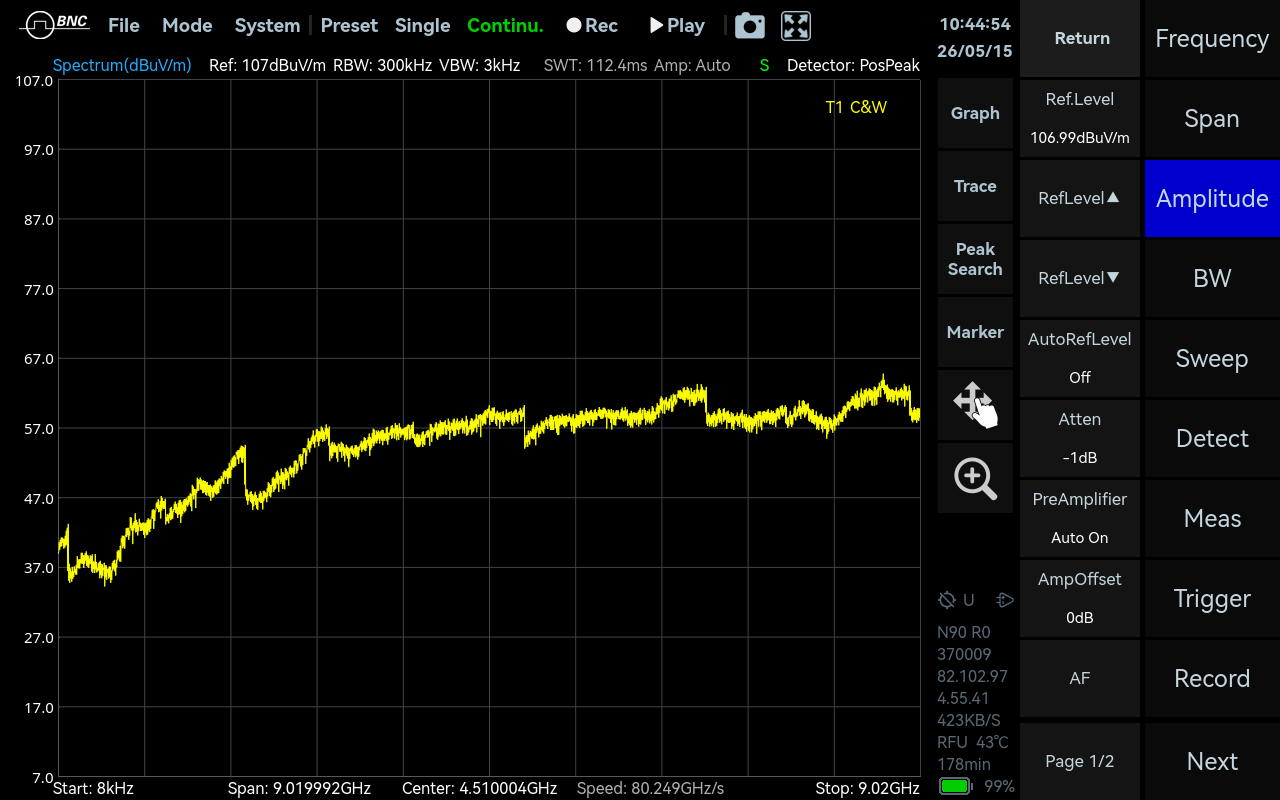

A standard set of measurement and utility functions runs on every ICX-FieldHawk. Pulse Detection and digital demodulation are software options.
<-65 dBc, center frequency ± (N/M) × 125 MHz, N, M = 1, 2, 3, 4, 5...
IIP3 / IIP2 (dBm)
Each cell lists IIP3 / IIP2.
Carrier frequency
ICX-090
ICX-200
ICX-400
1 GHz
9.5 GHz
1 GHz
20 GHz
1 GHz
40 GHz
R.L. = 20 dBm
46.1 / 83.2
40.5 / 92.8
45.5 / 82.6
35.3 / 93.6
40.3 / 75.5
31.7 / 88.6
R.L. = 0 dBm
26.7 / 85.0
19.2 / 90.3
25.5 / 81.1
21.0 / 89.0
27.4 / 45.3
10.3 / 86.1
R.L. = -20 dBm
10.5 / 82.2
2.0 / 49.3
7.9 / 81.5
-4.5 / 55.3
8.7 / 25.2
4.8 / 66.6
7Amplitude & DANL
Amplitude
Parameter
ICX-090 / ICX-200
ICX-400
Display range
DANL to 23 dBm (typ.)
DANL to 20 dBm (typ.)
Reference level (R.L.)
-50 dBm to +23 dBm (typ.)
-50 dBm to +20 dBm (typ.)
VSWR
90 MHz to 9.5/20 GHz: <2.0:1
90 MHz to 16 GHz: <2.0:1; 16 GHz to 40 GHz: <3.0:1
Max. DC voltage
±10 VDC
IF in-band flatness
±2.0 dB
Max. input power (CW)
23 dBm: 50 MHz to 9.5/20/40 GHz and the preamplifier is off; 10 dBm: 9 kHz to 50 MHz or preamplifier is on
Amplitude accuracy
9 kHz to 9.5 GHz: ±2.0 dB; 9.5 GHz to 20/40 GHz: ±3.0 dB
RF preamplifiers
Automatically turn on or forcibly turn off
Display Average Noise Level (DANL, dBm/Hz)
RBW = 1 kHz.
Reference level (R.L.)
ICX-090
ICX-200
ICX-400
-20 dBm
-50 dBm
-20 dBm
-50 dBm
-20 dBm
-50 dBm
9 kHz to 1 MHz
-143.0
-152.4
-143.6
-152.6
-136.0
-145.8
1 MHz to 90 MHz
-152.0
-159.2
-151.8
-160.0
-153.7
-158.0
90 MHz to 3 GHz
-146.0
-167.5
-149.7
-166.3
-154.1
-159.9
3 GHz to 9.5 GHz
-153.6
-167.0
-151.4
-157.5
-154.1
-159.9
9.5 GHz to 19 GHz
-
-
-156.1
-160.6
-156.8
-161.5
19 GHz to 20 GHz
-
-
-156.1
-160.6
-145.2
-149.3
20 GHz to 40 GHz
-
-
-
-
-145.2
-149.3
8Sweep, Detection & Real-Time Analysis
Standard Spectrum Analysis
Parameter
Specification
Detector
PosPeak, NegPeak, Sample, Average, RMS, MaxPower
RBW
1 Hz to 10 MHz
VBW
1 Hz to 10 MHz
Data chart
SpecICX-gen3 software provides spectrum, spectrogram, and historical trace
Measurements

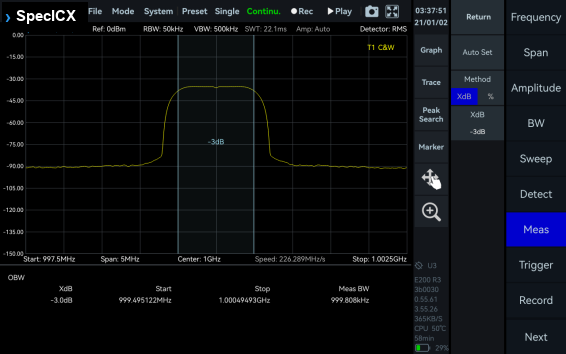

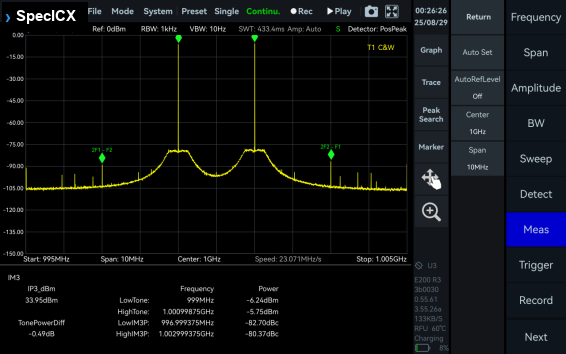

Channel power, OBW, X dB bandwidth, Adjacent channel power ratio, IM3
Sweep Speed
Condition
Sweep speed
RBW = 250 kHz FPGA, spur reject = bypass
1.0 THz/s
RBW = 250 kHz FPGA, spur reject = standard
577.5 GHz/s
RBW = 50 kHz FPGA, spur reject = bypass
212.6 GHz/s
RBW = 1 kHz CPU, spur reject = bypass
2.6 GHz/s
Detection Analysis
Parameter
Specification
Lowest time resolution
8 ns
Max. analysis bandwidth
100 MHz
Detector
PosPeak, NegPeak, Sample, Average, RMS, MaxPower
Real-Time Spectrum Analysis
Parameter
Specification
FFT analysis
FFT engine is implemented in FPGA. Frame compression and trace detection are supported. No missing samples between FFT frames. FFT frame update rate = 10^9 ns / (N × D × 8 ns); POI = 2 × N × D × 8 ns, for FFT points (2048, 1024, 512, 256, 128, 64, 32) and D the decimate factor (1, 2, 4, 8...). Typical: N = 2048, D = 1 gives 61,035 times/sec and 32.768 us POI; N = 32, D = 1 gives 3,906,250 times/sec and 0.512 us POI.
Max. analysis bandwidth
100 MHz
Window function
B-Nuttall, Flat-top, LowSideLobe
RBW
14.73 MHz to 3.59 kHz (Flat-top); 7.81 MHz to 1.90 kHz (B-Nuttall); 13 grades for each window type
Amplitude resolution
0.75 dB
9IQ Recording
Parameter
Specification
Burst recording bandwidth
Maximum 100 MHz. The built-in memory depth is 128 Mbytes.
Ambient temp. 0 to 40 °C: 5 to 75%; ambient temp. > 40 °C: 5 to 45%
Packaging and accessories
Protected main unit ×1, power adapter ×1, power cord ×1, lanyard ×1
Specification conditions. Values apply under the following conditions: (1) start up and warm up for 10 minutes; (2) ambient temperature 25 °C (core temperature 50 °C); (3) standard spectrum analysis mode with spurious rejection standard on; (4) necessary heat dissipation is provided so the ambient and core temperatures stay within the rated range at the same time; (5) sweep speed and display average noise level test conditions are MCU 0.55.57, FPGA 0.55.22, API 0.55.61.
11Options
Code
Description
Type
01
Built-in OCXO reference clock
Built-in hardware
34
External omnidirectional antenna, 400 MHz to 8000 MHz, gain < 2 dBi
Accessory
35
External active directional antenna, frequency range 0.5 to 10 GHz, gain < 5 dBi (amp off); < 25 dBi (amp on)
