1Summary

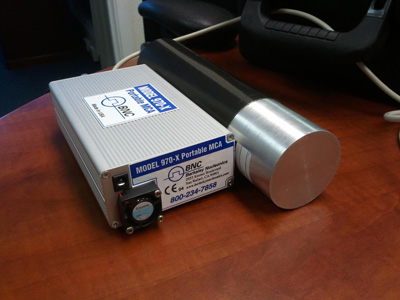

The Model 970, with a full-featured MCA program, can be used with practically any radiation detector and can extract any data your detector can supply. It has been designed taking into account comments and requests from our current customers. The all-new fully quantitative Windows based software package has been designed for ease of use in a 32-bit Windows environment.
Software also includes 970 for PPC to run the Model 970 using a Windows Mobile Device (Jornada, iPAQ, TDS Recon, etc.) running WindowsCE or Windows Mobile. The Software can be installed on as many computers as you like with no restrictions, and it includes free software updates.
2Software Includes
- Fully editable standard libraries include all 387 isotopes listed in "Kocher's Radioactive Decay Tables."
- Multi-channel scaling mode, peak search and identify, quantification based on ROIs library, or peaks search.
- Sophisticated multiple alarm functions are based on the overall count rate, individual ROIs, exceeding a specific rate or an increase in rate over a specific time interval. Alarms can trigger external devices.
- Provisions are included for acquiring and saving spectra repeatedly and continuously while unattended. Spectra can be saved and reloaded to "live" for reanalysis or additional data accumulation, or loaded as a background spectrum. Saved spectra can be superimposed on the "active" spectrum for comparison. Spectrum format is easily accessible by a spreadsheet program. All reports can be previewed, printed, or saved as text or rich text files.
3Inputs & Connectors
The Model 970 provides 4096 channels, and can also be configured for 256, 512, 1024, or 2048 channels. Wide gain range is achieved by utilizing coarse and fine gain controls, for gain from x1 to x250. Shaping time is adjustable from 0.25 to 10 µs.
Probe Connectors
Two detector inputs are provided. One standard series "C" connector is for detectors where the signal is joined with the high voltage supply. The other is for detectors having separate connections for high voltage (SHV connector) and signal (BNC connector). The active detector input is selected via software and can be negative, positive, or pre-shaped (positive) signal.
High Voltage Supply
The internal bias voltage supply provides positive high voltage from 0 to 2000 V at up to 0.5 mA. Negative High Voltage is available upon request.
External Connector
The external connector provides +5 V, +12 V, and -12 V for external preamplifiers and two logic signals for notifying external devices of alarm conditions.
4Specifications
| Parameter | Specification |
|---|---|
| Channels | 4096-channels, can also be configured for 256, 512, 1024, or 2048 channels |
| Shaping time | 0.25 to 10 µs, adjustable |
| Gain | x1 to x250, coarse and fine gain controls |
| Detector inputs | Two inputs, software-selected; can be negative, positive, or pre-shaped (positive) signal |
| Input connector 1 | Standard series "C" connector (signal joined with the high voltage supply) |
| Input connector 2 | SHV connector (high voltage) and BNC connector (signal) |
| High voltage supply | Internal bias, 0 to 2000 V positive, up to 0.5 mA; Negative High Voltage available upon request |
| External connector | +5 V, +12 V, and -12 V for external preamplifiers; two logic signals for external alarm conditions |
| Switches | Power On/Off, and Fast/Normal charging rates; internal switch in the battery compartment suppresses battery-charging circuitry when non-rechargeable batteries are used |
| LED indicators | On/Off, external power availability, and fast charge activation |
| Minimum system requirements | Windows XP or higher, or Windows Mobile Device with serial connector |
| Temperature range | 32° - 122°F (0° to 50°C) |
| Weight | 391 grams (13.8 oz.) |
| Size | 157 x 90 x 44 mm (6.2 x 3.5 x 1.7 in.) |
| Includes | MCA Software, Carrying Case, and USB-Serial Adapter |
5Software
The all-new fully quantitative Windows based software package has been designed for ease of use in a 32-bit Windows environment. The software can be installed on as many computers as you like with no restrictions, and it includes free software updates.
The software also includes 970 for PPC to run the Model 970 using a Windows Mobile Device (Jornada, iPAQ, TDS Recon, etc.) running WindowsCE or Windows Mobile. Minimum system requirements are Windows XP or higher, or a Windows Mobile Device with a serial connector.
6Power & Physical
Power Requirements
The Model 970 runs from an external 12VDC power supply, six "AA" NiMH rechargeable batteries (included) when recharging internally, or six standard alkaline "AA" batteries. The external 12VDC power jack allows the instrument to plug into a vehicle. "Fast Charge" of NiMH batteries can also be selected. The Model 970 is fully portable with four hours of battery life and PPC Compatibility.
Physical
| Parameter | Specification |
|---|---|
| Temperature range | 32° - 122°F (0° to 50°C) |
| Weight | 391 grams (13.8 oz.) |
| Size | 157 x 90 x 44 mm (6.2 x 3.5 x 1.7 in.) |
| Includes | MCA Software, Carrying Case, and USB-Serial Adapter |
7Ordering
To configure a Model 970, select the channel configuration and the high voltage polarity your application requires (Negative High Voltage is available upon request), then confirm the software and accessory set. For a quote, a demonstration, or help integrating the analyzer into an existing system, contact Berkeley Nucleonics at info@berkeleynucleonics.com or 415-453-9955.
